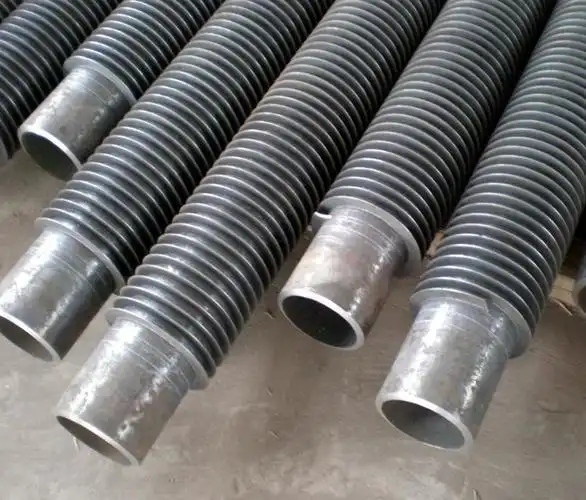

Finned tubes, also known as heat exchange tubes, are heat transfer components designed to enhance heat transfer efficiency by increasing surface area. They are suitable for high-temperature, high-pressure, and corrosive environments in industrial sectors such as boilers, power generation, and metallurgy.
Their core function is to reduce contact thermal resistance while offering corrosion resistance and wear resistance, making them commonly used in waste heat recovery and heat exchange equipment.
Operating continuously under conditions of high-temperature flue gas, high pressure, and corrosive atmospheres, finned tubes as heat exchange components must meet stringent performance requirements.

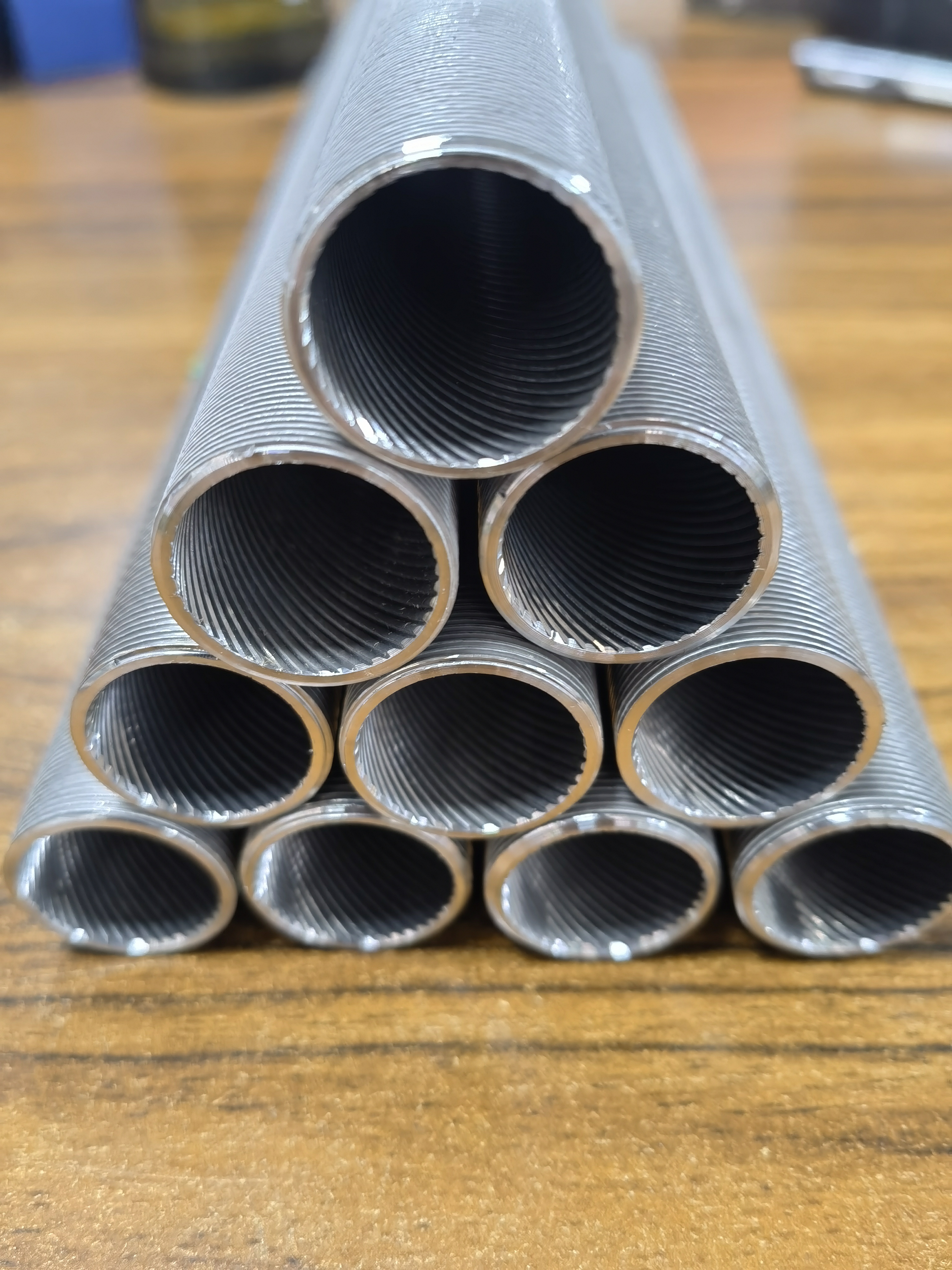

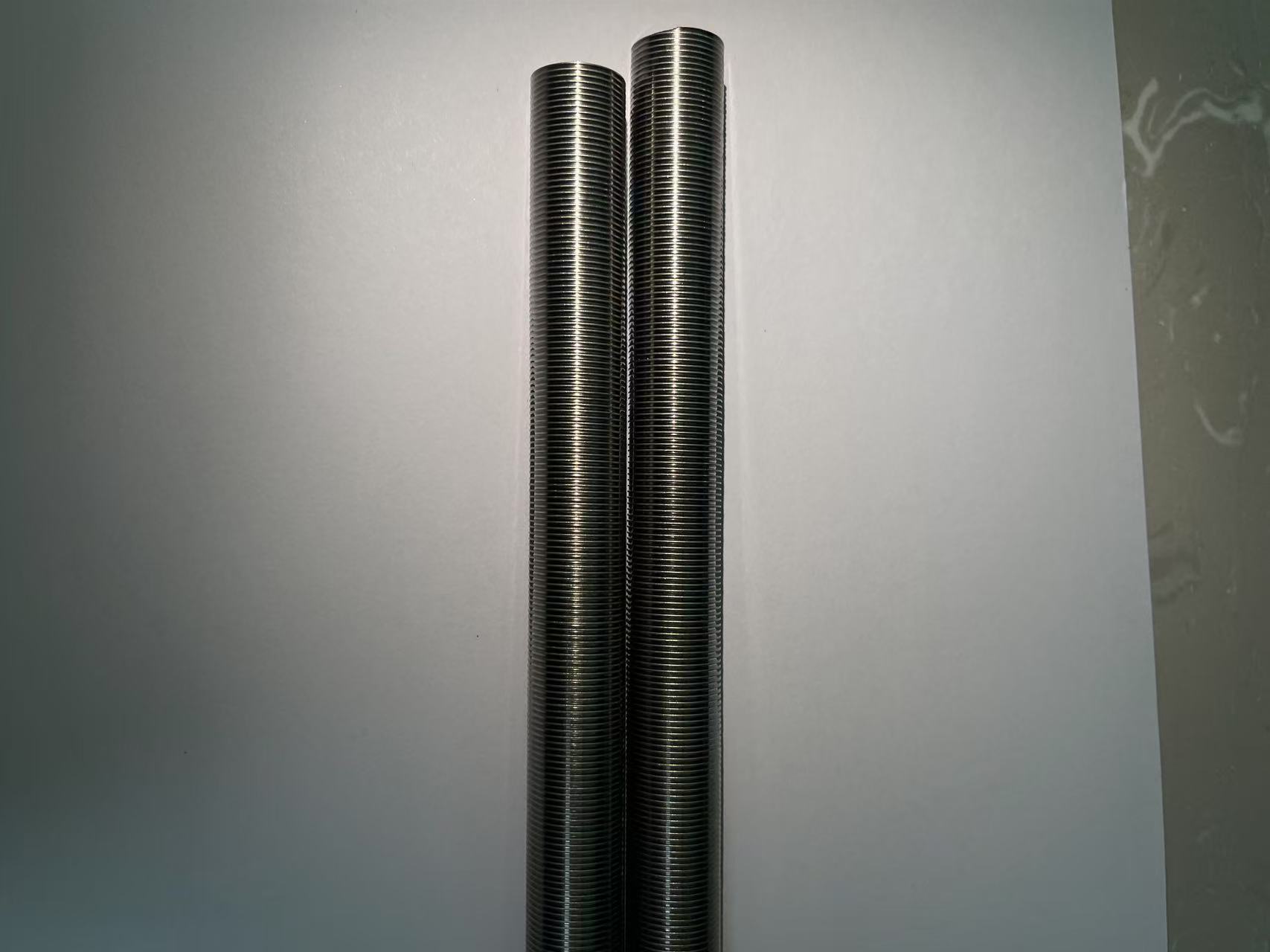

(Stainless Steel Low-Fin Tubes) (Internal Threaded External Fin Tube)
Product Type
Finned tube
Product Material
304, 304L, 321, 316, 316L, 310S, 347H, 2205, 2507, 904L, etc.
Process Size
conventional diameter 19mm, 25mm, 32mm, 38mm spot, according to the requirements to do sizing, the longest can do 30m, according to the application of different, can use cold drawing (annealing, pickling for soft industrial tube) and cold rolling (uniform wall thickness, hard not annealing inside and outside bright, annealing into soft industrial tube) two kinds of process.
Testing
according to customer requirements can do water pressure, ultrasonic, eddy current testing.
Product Features
stainless steel boiler tube, stainless steel heat exchange tube, stainless steel condensation tube, with high temperature steam resistance, impact corrosion resistance, ammonia corrosion resistance; Anti scaling, not easy to stain, anti oxidation corrosion; Long service life, reduce maintenance time, save costs; Good technology, can be directly changed tube, uniform tube wall, safe and reliable, overall thermal conductivity is better than copper tube; It is an ideal heat exchange product for the transformation of old units and the manufacture of new equipment.
Application
Industrial use (sugar refining, papermaking, irrigation)
Standard
GB3087-1999 "Seamless steel tubes for low and medium pressure boilers", GB5310-1995 "Seamless steel tubes for high pressure boilers", GB13296-2007 "Seamless stainless steel tubes for boilers and heat exchangers", ASME SA213 "seamless ferritic and austenitic alloy steel tubes for boilers, superheaters and heat exchangers".
Chemical Composition
Meets the requirements for each grade
