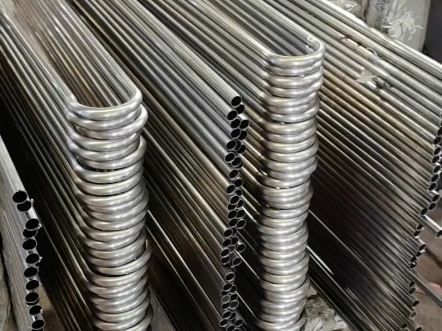

A serpentine tube assembly consists of three consecutive sections of cylindrical or conical tubes whose axes lie in non-coplanar planes.
Serpentine tubes are pipes that meander multiple times within a single plane. For convective heat transfer surfaces in boilers—such as economizers, superheaters, and reheaters—serpentine tube configurations are commonly employed in both horizontal and vertical layouts.
Vertically arranged serpentine tubes are prone to water accumulation after boiler shutdown but facilitate support and suspension.
The superheater, reheater, and economizer in boilers all employ serpentine tube heat transfer surfaces.
Product Type
Serpentine tube
Product Material
304, 304L, 321, 316, 316L, 310S, 347H, 2205, 2507, 904L, etc.
Process Size
conventional diameter 19mm, 25mm, 32mm, 38mm spot, according to the requirements to do sizing, the longest can do 30m, according to the application of different, can use cold drawing (annealing, pickling for soft industrial tube) and cold rolling (uniform wall thickness, hard not annealing inside and outside bright, annealing into soft industrial tube) two kinds of process.
Testing
according to customer requirements can do water pressure, ultrasonic, eddy current testing.
Product Features
stainless steel boiler tube, stainless steel heat exchange tube, stainless steel condensation tube, with high temperature steam resistance, impact corrosion resistance, ammonia corrosion resistance; Anti scaling, not easy to stain, anti oxidation corrosion; Long service life, reduce maintenance time, save costs; Good technology, can be directly changed tube, uniform tube wall, safe and reliable, overall thermal conductivity is better than copper tube; It is an ideal heat exchange product for the transformation of old units and the manufacture of new equipment.
Application
Industrial use (sugar refining, papermaking, irrigation)
Standard
GB3087-1999 "Seamless steel tubes for low and medium pressure boilers", GB5310-1995 "Seamless steel tubes for high pressure boilers", GB13296-2007 "Seamless stainless steel tubes for boilers and heat exchangers", ASME SA213 "seamless ferritic and austenitic alloy steel tubes for boilers, superheaters and heat exchangers".
Chemical Composition
Meets the requirements for each grade
